Water heating fireplace KRATKI ZUZIA DECO 12 kW Ø 200 installation kit

Fireplace insert with water jacket and built-in coil ZUZIA DECO 15 kW + INSTALLATION KIT

Catalog number: ##ZUZIA/PW/15/W/DECO/ZESTAW/MON##

Product information:

meets the requirements of the ECODESIGN

body and front of the insert made of steel intended for operation at elevated temperatures

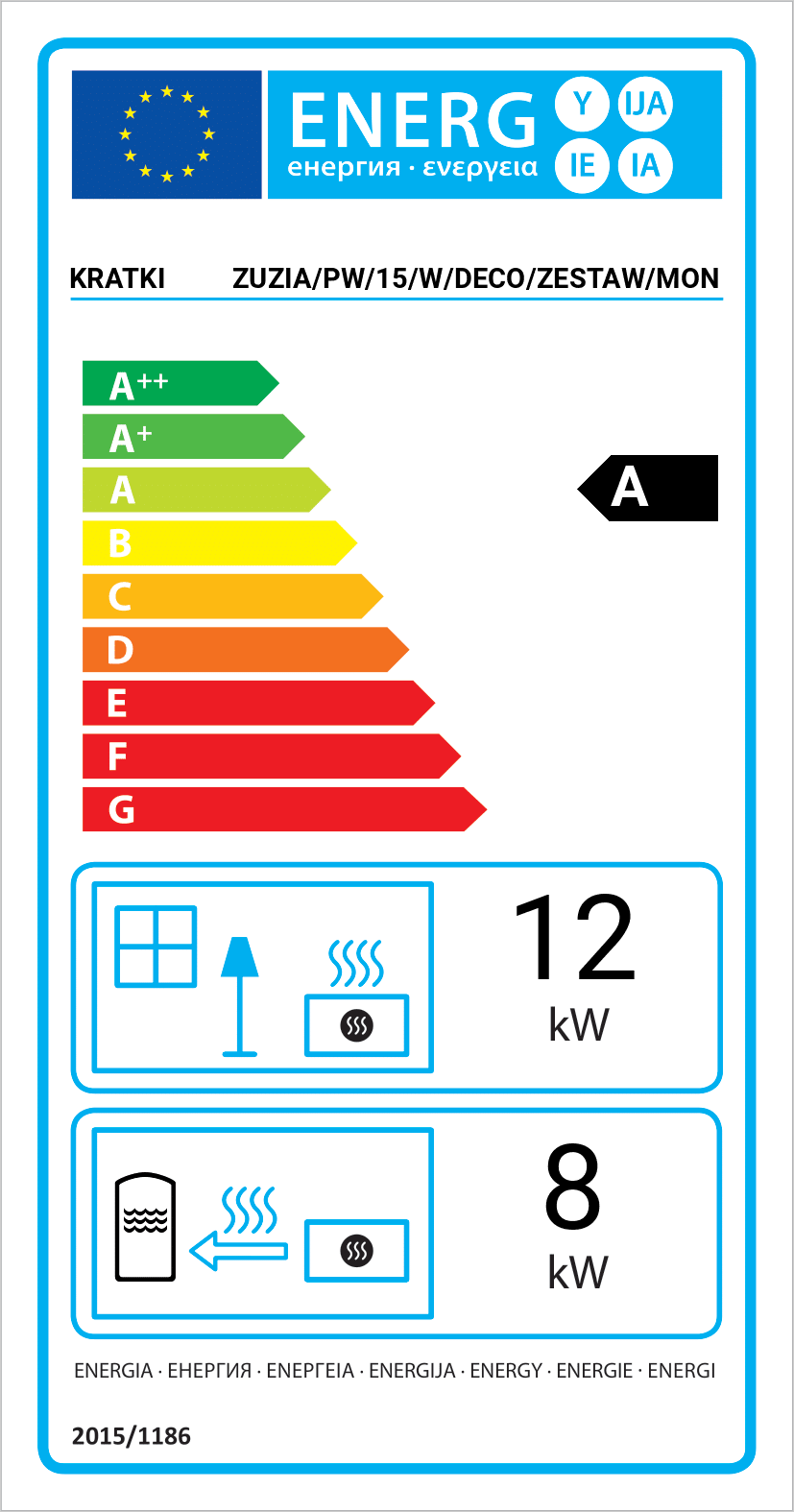

ENERGY CLASS A

built-in baffles and high flue, which increase the heat exchange surface

decorative glass type glass resistant to temperatures up to 660°C, giving the fireplace a modern and elegant look

heating power range from 5 to 15 kW

high efficiency up to 81%

overheating protection through built-in coil - inlet/outlet stub 1⁄2”.

installation kit

The installation kit was used by our installers to create the presented enclosure of the Zuzia Deco insert with a water jacket 15 kW.

If you want to change or add any element to the set, you will find a wide selection of fireplace accessories in our other auctions.

THE SET INCLUDES:

Fireplace ZUZIA PW 15 DECO - 1 pc.

Base for Zuzia insert - 1 pc.

Steel pipe 200/1m - 1 pc.

Steel pipe 200/0.5m - 2 pcs.

Cold air inlet + cord - 1 pc.

Movable elbow 200/90 - 1 pc.

Flex fi 125 - 1 pc.

Grilles luft BLACK SF 9 x 80 - 1 pc.

Grilles luft BLACK 9 x 80 - 1 pc.

Tape 350 - 1 pc.

Hose clamp - 4 pcs.

Joint adhesive 1 kg - 4 pcs.

Max adhesive - 1 pc.

Insulation boards - set of 20 pcs.

Board dowel - 16 pcs.

Rosette fi 125 - 1 pc.

Chimney flange fi 200 - 1 pc.

Insulation for Zuzia insert - 1 pc.

Expansion vessel - 1 pc.

Thermal safety valve - WATTS - 1 pc.

Transition inlet-pipe 90 degrees fi 125 - 1 pc.

Transition steel pipe - ceramic chimney fi 200 - 1 pc.

Fireplace controller fi 125 - 1 pc.

Your fireplace can look like the one made by our installers.

The MSK set with damper fi 125 is a modern fireplace controller with a screen, which can be used for all air and water jacket inserts. Its task is to allow cold air (for combustion) from outside the building directly into the combustion chamber in such a way that it is maximally efficient. Thanks to its use, we can save up to 30% of wood and after 2 months of use, the money spent on its purchase will be returned.

The thermal safety valve - WATTS protects against the possibility of water boiling in the heating system.

The 20l expansion vessel with self-admitting valve is a hydraulic protection for the fireplace with a water jacket.

Technical data:

Nominal power (kW): 12

Heating power range (kW): 5-15

Average water power (kW): 8

Max working pressure (bar): 2

Water capacity (l): 38

Flue diameter (mm): 200

Thermal efficiency (%): 81

CO emission (at 13% O₂) ≤: 0.09%

Dust emission (mg/Nm3): 33

Flue gas temperature °C: 255

Weight (kg): 182

Width (cm): 65.2

Height (cm): 86.9

Depth (cm): 48.9

Max log length (mm): 400

Material: cast iron, steel

Fuel type: recommended seasoned hardwood with moisture content ≤20%

MAXIMUM USE OF ENERGY

Body and front of the insert resistant to high temperatures due to the material used - high-grade steel.

Built-in baffles and high flue, which increase the heat exchange surface.

Increased heat exchange surface thanks to built-in baffles and high flue.

Air draft regulation through built-in damper.

Manual control over the combustion process of air drawn from the room through the ash pan.

SAFETY AT THE HIGHEST LEVEL

Excellent tightness, thanks to solid welds made in the shield of noble gas.

Steel elements cut with laser using modern devices, and then bent on CNC benders.

Overheating protection through built-in coil - inlet/outlet stub 1⁄2”.

ECOLOGICAL COMBUSTION

The device meets the requirements of Ecodesign and the BImSchV 2 standard, setting the maximum CO emission.

CONVENIENT USE

Decorative fence facilitates maintaining cleanliness of use and protects against wood falling out.

Removable grate and ash pan facilitate keeping the insert clean.

Decorative glass type glass resistant to temperatures up to 660°C, giving the fireplace a modern and elegant look, optically enlarges the front of the insert.
