Recommended products
Designations
Sku MBA/PW/17/W
Specification
Rated output (kW) 17
Heating efficiency (%) 86
Meets requirements Ecodesign
Weight (kg) 314.5
Shipping
Availability 60 days of implementation In production
Expected delivery date 06.02 - 12.02
Shipping from £350.66
Description
MAXIMUM USE OF ENERGY
Made of high quality steel resistant to very high temperatures.
Efficient burning process & maintaining of temperature to keep the warmth for longer thanks to lining of combustion chamber with TERMOTEC - heat accumulating material which raises the temperature in the combustion chamber.
Special water system which allows that big amount of the heat from fumes is transferred into heating system, thanks to that high energy efficiency is obtained.
Protection against overheating by the built-in coil pipe - connector input / output 1/2”.
Fireplace`s doors resistant to tensions and stable thanks to the use of closed profile. Door seals designed in profiled canal what guarantees proper adherence and protects against ewentual falling out while operating.
More ecological combustion thanks to double deflector system which extends the exhaust gas path.
Air supplied from outside only thanks to biult-in an external air inlet fi 125mm with throttle valve. Air adjustment with just one regulator which prevents from improper usage.
Triple system of combustion chamber`s air venting: primary air - secondary air supplied under the grate through holes in a back wall. Additionally clean glass system designed (air curtain).
SAFETY AT THE HIGHEST LEVEL
Perfect tightness thanks to the solid welds made in a noble gas shielding.
All steel elements are laser cut and bent on CNC bending machines.
Insert`s front equipped with a heat resistant ceramics that withstands temperatures up to 660°C.
CONVENIENT TO USE
Grateless fireplace insert - full combustion on the dust what means that firewood burns into fine ash at minimum amount. Obtained thermal energy from firewood is exploited to the maximum. The bottom plate of the insert is significantly reduced relative to the door.
Reduced soot deposition through a system of pure glass (air curtain).
The special perforated design of the handle protects against excessive heating, which has the influence on the high comfort of using the fireplace.
MODERN DESIGN
Decorative, heat-resistant glass that can withstand temperatures up to 660°C. It gives a fireplace a modern and elegant look, visually enlarges the front of the insert.
Doors are equipped with modern handle.
Technical data
| Rated output (kW) | 17 |
|---|---|
| Heating power range (kW) | 9.0 - 19.5 |
| Heating efficiency (%) | 86 |
| Max working pressure (bar) | 2 |
| Water capacity (l) | 47 |
| Exhaust gas temperature (℃) | 201 |
| Max length of logs (cm) | 50 |
| Min outlet grids active field (cm2) | 480 |
| Min inlet grids active field (cm2) | 240 |
| Door opening direction | Left |
| Materials | Steel |
| Self Closure | No |
| Flue outlet diameter (mm) | 200 |

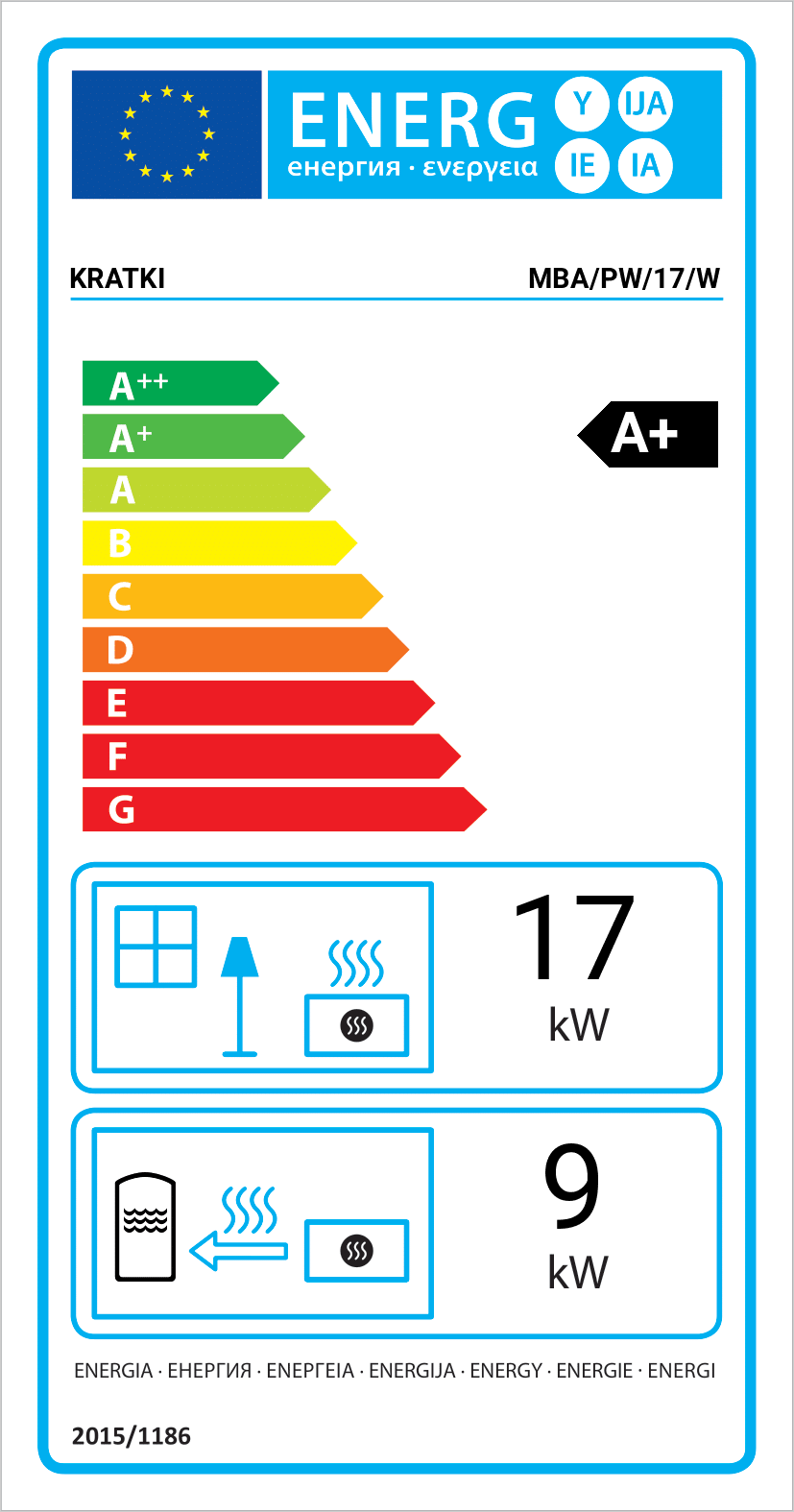

| Energy class | A+ |
|---|---|
| Average power from water (kW) | 9 |
| Thermal power for space heating (kW) | 8 |
| Energy efficiency index (EEI) | 113.2 |
| Dust emission (mg/Nm3) | 8 |
| CO emissions (at 13% O 2 ) ≤ given in % | 0.09 |
| Meets requirements | Ecodesign |
|---|
| EAN | 5901350031339 |
|---|---|
| Design features | Air intake - built in |
| Type of fuel | Seasoned deciduous wood (humidity ≤20%) |
| Width (cm) | 83 |
|---|---|
| Height (cm) | 139.5 |
| Depth (cm) | 47.9 |
| Weight (kg) | 314.5 |
