Designations
Sku LUCY/14/Z/MSK
Specification
Nominal power (kW) 14
Thermal Efficiency (%) 81
Certificates
- KRATKI PRO
- Ecodesign
- Designed for recuperation
- BImSchV 2
Weight (kg) 182.89
S/4/G/757X477/NADIA/12
07BL6757-08-00-00/MALOWANE
SZNUR/W/CZARNY/PODKLEJANY
KLAMKA/PERFOROWANA/MB/LUCY
Description

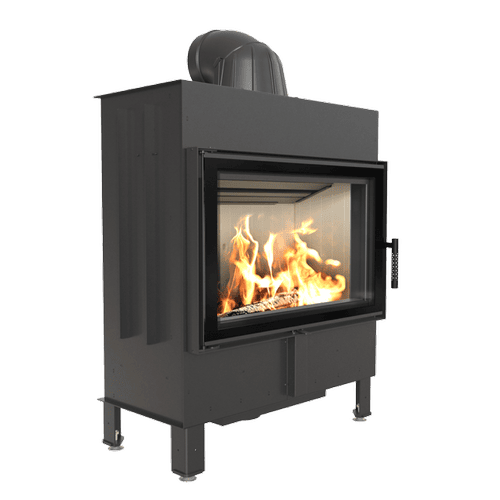

I INTELLIGENT FIREPLACE WITH MSK CONTROL
Save money and the environment with the electronically controlled fireplace insert Lucy.
The MSK controlled fireplace insert is the latest development in the field of intelligent fireplaces.
Thanks to the automatic control of the combustion process we can save up to 30% of wood - you save money and the environment.
It is also very important that in case of blackout the electronic damper is set in the open position allowing you to return to the manual control of the combustion process.
The device meets the requirements of Ecodesign and the BImSchV 2 standard for maximum CO emissions.
It is equipped with a single, decorative glass pane which makes it look elegant and modern. The application of this solution optically enlarges the front of the insert and emphasizes the vision of fire.
I CONTROLLER FUNCTIONS
- Precise dosage of air for combustion.
- Room temperature control - when the temperature set on the controller is reached, the damper automatically closes the supply of oxygen to the furnace, making the combustion process slower
- Protection against overheating.
I THE KIT INCLUDES
- MSK microprocessor controller.
- Temperature sensor with 2.5 m silicone cable.
- Electronic damper.
- Flush box.
Technical data
| Nominal power (kW) | 14 |
|---|---|
| Heating power range (kW) | 6.0 - 17.0 |
| Thermal Efficiency (%) | 81 |
| Flue gas temperature (°C) | 265 |
| Optimal log length (mm) | 350 |
| Max billet length (cm) | 40 |
| Minimum required active area of inlet grilles (cm2) | ≥700 |
| Minimum required active field of outlet grilles (cm2) | ≥900 |
| diameter of the flue gas outlet | 200 |
| Air intake diameter (mm) | 125 |
| Base material | Steel |
| Door opening | Left |
| Energy class | A |
|---|---|
| EEI | 107 |
| Seasonal Energy Efficiency (%) | 71 |
| Heat output for space heating (kW) | 14 |
| CO emission (at 13% O2) ≤ given in % | 0.091 |
| CO emission (mg/m3) | 1132 |
| Pollen emission (mg/m3) | 18 |
| NOx emission (mg/m3) | 111 |
| OGC emission (mg/m3) | 44 |
| Flue gas mass flow (g/s) | 11.1 |
| Certificates | KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2 |
|---|
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
|---|---|
| Number of pieces in a package. | 1 |
| EAN | 5903751125501 |
| Width (cm) | 85.4 |
|---|---|
| Height (cm) | 120.03 |
| Depth (cm) | 42 |
| Weight (kg) | 182.89 |
