Designations
Sku LUCY/12/BLACK/Z/MSK
Specification
Nominal power (kW) 12
Thermal Efficiency (%) 80
Certificates
- KRATKI PRO
- Ecodesign
- Designed for recuperation
- BImSchV 2
Weight (kg) 166.89
S/4/G/607X477/NADIA/10
LISTWA/GLASS/NADIA/10/LUCY/12
DEFLEKTOR/DOLNY/STAL/LUCY/12/MALOWANE
07BL-08-00-00/MALOWANE
SZNUR/W/CZARNY/PODKLEJANY
KLAMKA/PERFOROWANA/MB/LUCY
TERMOTEC/LUCY/12 V2/BLACK
Description

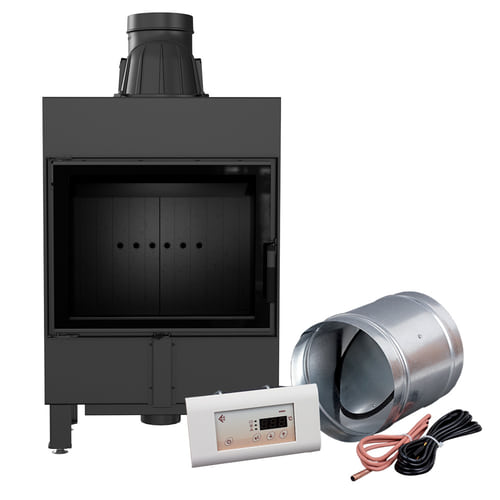

INTELLIGENT FIREPLACE WITH MSK CONTROLLER
Save money and the environment with the electronically controlled Lucy fireplace insert.
The fireplace insert controlled by the MSK controller is the latest solution in the field of intelligent fireplaces.
Thanks to the automatic control of the combustion process, we can save up to 30% of wood - saving you money and the environment.
It is also very important that in the event of a power outage, the electronic damper moves to the open position, allowing you to return to manual control of the combustion process.
The device meets the requirements of Ecodesign and the BImSchV 2 standard, which determines maximum CO emissions.
It is equipped with a single, decorative glass pane, which makes it look elegant and Modern. This solution visually enlarges the front of the insert and highlights the fire.
CONTROLLER FUNCTIONS
Precise combustion air dosage.
Room temperature control - when the temperature set on the controller is reached, the damper automatically closes the oxygen supply to the combustion chamber, slowing down the combustion process.
Overheating protection.
SET INCLUDES
MSK microprocessor controller.
Temperature sensor with a 2.5 m silicone cable.
Electronic damper.
Flush-mounted box.
Technical data
| Nominal power (kW) | 12 |
|---|---|
| Heating power range (kW) | 5.0 - 15.0 |
| Thermal Efficiency (%) | 80 |
| Flue gas temperature (°C) | 266 |
| Optimal log length (mm) | 350 |
| Max billet length (cm) | 35 |
| Minimum required active area of inlet grilles (cm2) | ≥700 |
| Minimum required active field of outlet grilles (cm2) | ≥900 |
| diameter of the flue gas outlet | 200 |
| Air intake diameter (mm) | 125 |
| Base material | Steel |
| Door opening | Left |
| Energy class | A |
|---|---|
| EEI | 105 |
| Seasonal Energy Efficiency (%) | 70 |
| Heat output for space heating (kW) | 12 |
| CO emission (at 13% O2) ≤ given in % | 0.092 |
| CO emission (mg/m3) | 1158 |
| Pollen emission (mg/m3) | 15 |
| NOx emission (mg/m3) | 117 |
| OGC emission (mg/m3) | 45 |
| Flue gas mass flow (g/s) | 11.1 |
| Certificates | KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2 |
|---|
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
|---|---|
| EAN | 5903751125471 |
| Width (cm) | 70.4 |
|---|---|
| Height (cm) | 120.3 |
| Depth (cm) | 42 |
| Weight (kg) | 166.89 |
