Designations
Sku ZUZIA/PW/BL/15/BS/W/DECO
Specification
Nominal power (kW) 12
Thermal Efficiency (%) 81
Certificates
- Ecodesign
- BImSchV 2
Weight (kg) 193
SZNUR/W/CZARNY/PODKLEJANY
S/4/G/448X453/ZUZIA/B
Description
Installing a fireplace with water jacket we don’t have to make a separate central heating installation. Because we can connect to the existing one.
MAXIMUM USE OF ENERGY
In the insert with water jacket the body of the fireplace has double walls. The space between them is filled with water which take the heat and emit to installation.
Enhanced heat exchange surface in the insert provided by smoked tubes built in and high flue.
Regulation of the string of air provided by built in damper.
Manual control over the process of combustion the air taken from the room provided by ash drawer.
SAFETY AT THE HIGHEST LEVEL
Front of the insert equipped with heat resistant ceramic which can withstand temperature up to 660°C.
The coil pipe installed in the insert protects the fireplace from overheating (input/output nipple 1⁄2”).
The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.
Perfect tightness thanks to the solid welds made in a noble gas shielding. All steel elements are laser cut and bent on CNC bending machines.
ECOLOGICAL COMBUSTION
The unit meets the requirements of Ecodesign standards and the restrictions of the BImSchV 2 standard, which determines the maximum CO emission.
COMFORT OF USE
Movable grate and ashpan enables to clean the insert.
Air curtain separates the glass from the chamber thanks of that the glass doesn’t become dirty and emit more heat to the room. Limited accumulation of soot thanks to the clean glass system (air curtain).
Mounting on uneven surface and levelling the insert thanks to adjustable legs.
MODERN DESIGN
Built up insert with water jacket doesn’t look different than standard air insert. It extends the benefits of air insert of possibility to connect the fireplace to central heating installation.
The insert has singular decorative glass thanks to that it looks elegant and modern. Additionally solution makes the front looks bigger optically.
Decorative glasses are putting together at a right angle (90 degrees).
The insert has elegant and comfortable handle.
Technical data
| Nominal power (kW) | 12 |
|---|---|
| Heating power range (kW) | 5.0 - 15.0 |
| Thermal Efficiency (%) | 81 |
| Max working pressure (bar) | 2 |
| Water capacity (l) | 38 |
| Flue gas temperature (oC) | 254 |
| Max billet length (cm) | 50 |
| Minimum required active field of outlet grilles (cm2) | 240 |
| Minimum required active area of inlet grilles (cm2) | 120 |
| Door opening | Left |
| Base material | Steel, Cast iron |
| Additional closing | No |
| diameter of the flue gas outlet | 200 |

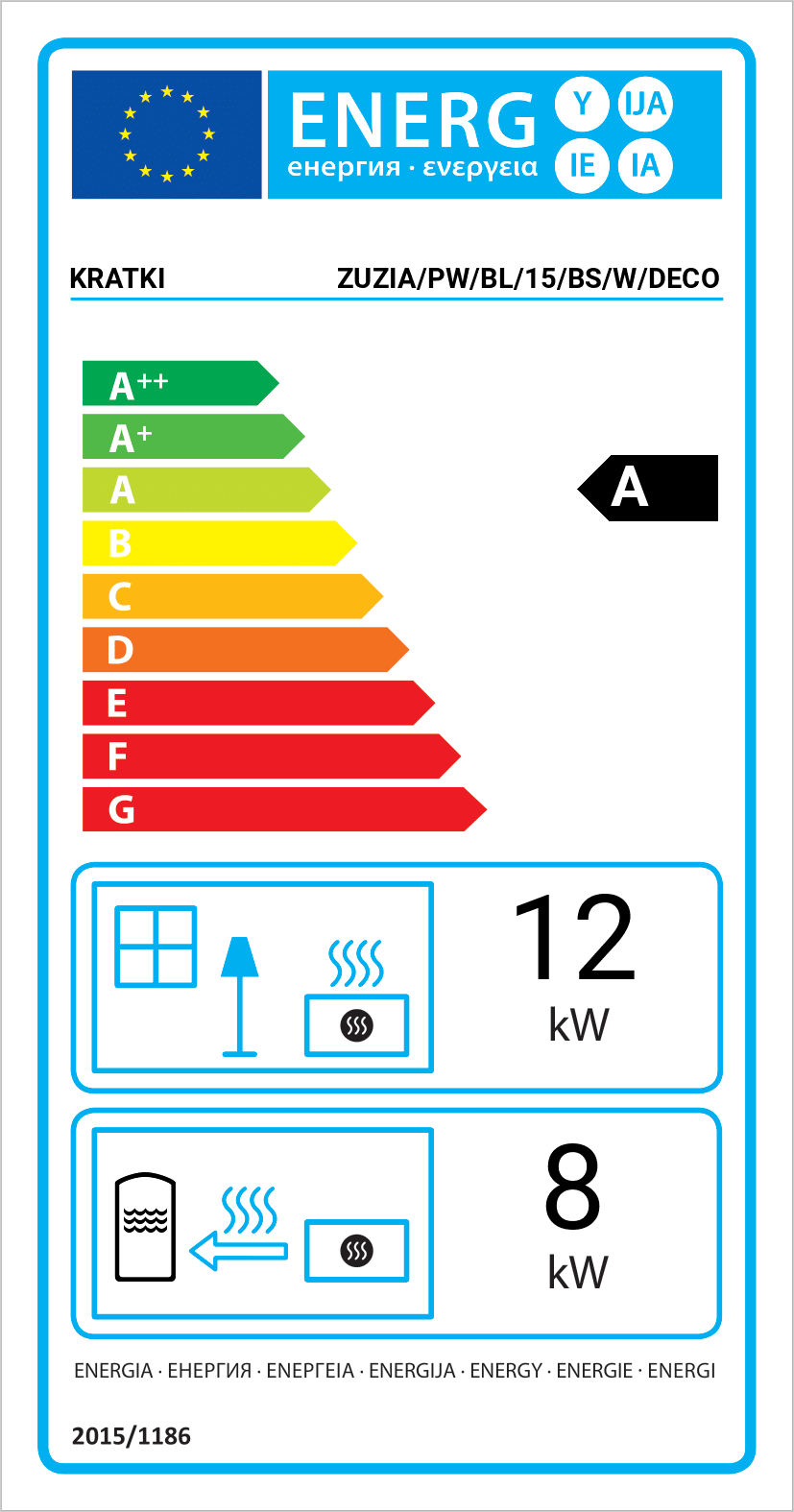

| Energy class | A |
|---|---|
| Average power from water (kW) | 8 |
| Heat output for space heating (kW) | 4 |
| Seasonal Energy Efficiency (%) | 71 |
| CO emission (mg/m3) | 1087 |
| NOx emission (mg/m3) | 108 |
| OGC emission (mg/m3) | 68 |
| EEI | 106 |
| Pollen emission (mg/m3) | 33 |
| CO emission (at 13% O2) ≤ given in % | 0.086 |
| Certificates | Ecodesign, BImSchV 2 |
|---|
| EAN | 5901350046395 |
|---|---|
| Equipment | Ashpan, Decorative glass |
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
| Width (cm) | 70.4 |
|---|---|
| Height (cm) | 99.3 |
| Depth (cm) | 49.1 |
| Weight (kg) | 193 |
