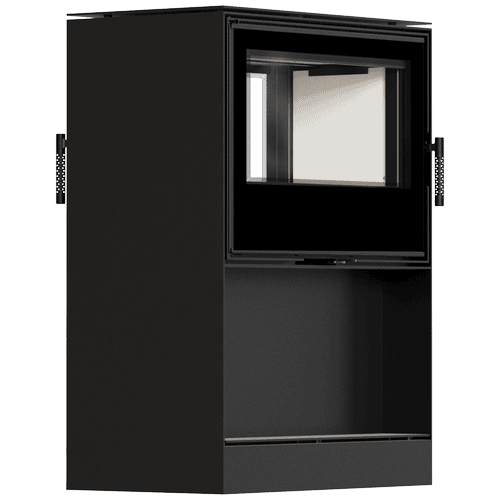

Wood burning stove tunnel KRATKI KARI 80 12 kW Ø 180 with wood storage
- Ecodesign
- Designed for recuperation
- BImSchV 2
Description
KARI 80 Tunnel – a fire that connects
KARI 80 Tunnel is a modern built-in fireplace cassette that impresses with its functionality, design, and eco-friendly approach to heating. The wood recess provides easy access to fuel and adds charm and a cozy atmosphere to the home. Its minimalist form and striking glazing make it a perfect complement to a variety of styles – from classic to contemporary.
The glazed tunnel design allows you to enjoy the view of the fire in two rooms simultaneously. Perfect for a combined living room and dining room, day area, or open-plan loft.
This solution not only heats, but also connects interiors, people, and emotions.
Even more ecological and efficient
The KARI 80 Tunnel fireplace was designed with the future and the environment in mind.
It meets the strict environmental requirements of regional regulations regarding emission standards for fireplaces and other solid fuel heating appliances, including: Ecodesign, BImSchV 2.
This guarantees clean combustion, low emissions, and the highest energy efficiency. The fireplace works perfectly with heat recovery systems, making it an excellent choice for modern, energy-efficient homes. Quality, durability, and universal use The KARI series is part of the Kratka PRO line, which means the highest quality of workmanship and a 10-year warranty. The external elements - the casing, recess, and top plate - are made of high-quality 5 mm thick steel, ensuring the stability and durability of the entire structure.
Why choose the KARI 80 Tunnel:
- Tunnel version - glazing on both sides allows you to admire the fire from two rooms,
- Longer temperature retention thanks to the combustion chamber lining with TERMOTEC heat-storing material,
- aria-level="1">wood recess - provides easy access to fuel,
- intuitive air flow adjustment,
- perforated handle for natural cooling,
- cast iron grate and steel ash pan for easy everyday use,
- Clean glass system keeps the glass clean,
- Heat-resistant glass with temperature resistance up to 600°C,
- Triple combustion chamber air system - high efficiency and clean combustion,
- Steel deflector extends the exhaust gas path for optimal energy utilization,
- Air intake via an external 100mm diameter connector,
- Surface coated with paint with increased scratch resistance and uniform structure,
- Construction made of high-quality, 5mm-thick steel guarantees durability and stability,
- decorative glass - modern look and optical enlargement of the front,
- 10-year warranty confirming quality and reliability.
Technical data
| Nominal power (kW) | 12 |
|---|---|
| Thermal Efficiency (%) | 75 |
| Flue gas temperature (oC) | 319 |
| Optimal log length (mm) | 300 |
| Max billet length (cm) | 50 |
| diameter of the flue gas outlet | 180 |
| Air intake diameter (mm) | 100 |
| Base material | Steel |
| Energy class | A |
|---|---|
| EEI | 98 |
| Seasonal Energy Efficiency (%) | 65 |
| Heat output for space heating (kW) | 12 |
| CO emission (at 13% O2) ≤ given in % | 0.124 |
| CO emission (mg/m3) | 1208 |
| Pollen emission (mg/m3) | 34 |
| NOx emission (mg/m3) | 102 |
| OGC emission (mg/m3) | 54 |
| Flue gas mass flow (g/s) | 11.5 |
| Certificates | Ecodesign, Designed for recuperation, BImSchV 2 |
|---|
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
|---|---|
| EAN | 5903751400110 |
| Width (cm) | 77 |
|---|---|
| Height (cm) | 107.1 |
| Depth (cm) | 45.4 |
| Weight (kg) | 253.85 |
