- PRO
Fireplace cassette KRATKI LAHOLM 6.7 kW Ø 125
- KRATKI PRO
- Ecodesign
- Designed for recuperation
- BImSchV 2
Description

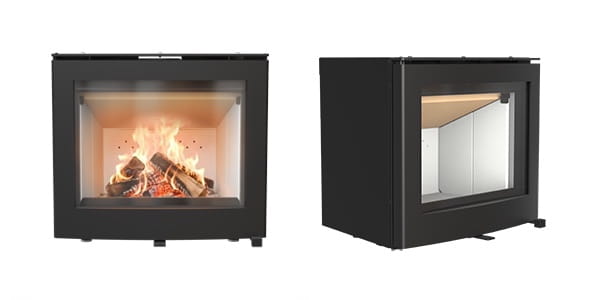

Fireplace cassette KRATKI LAHOLM
We are confident in the quality of our equipment.
By betting on our product you ensure peace of mind, trouble-free use and satisfaction with your purchase.
ADVANTAGES
■ No pressure handle: closure based on a convenient spring latch system.
■ Grateless combustion chamber: post-combustion on ash for maximum use of energy from wood.
■ Heat-resistant glass: glass (up to 660°C) with an elegant black decor.
■ TERMOTEC lining: heat-accumulating material that increases the temperature in the combustion chamber. After the fire extinguishes, heat is released into the room for a long time.
■ Triple air supply system: ensures excellent efficiency and ecology of the combustion process.
■ Triple deflector system: (including a vermiculite deflector): extends the exhaust gas path, optimally utilizing energy.
■ Dedicated to heat recovery: completely safe for use in homes with modern mechanical ventilation. Sealed combustion chamber (CM type device) with an external air intake with a diameter of 67 mm.
■ Advanced air supply system - primary air (integrated with the air curtain), secondary air, and innovative "maintenance" air, controlled by a single regulator.
■ Intuitive air supply regulation: control over the combustion process is simple and precise, ensuring easy operation even for those inexperienced. Teflon-based damper
■ Possibility of connecting a hot air distribution system - hot air distribution to other rooms thanks to the pre-prepared end caps in the housing.
■ Clean glass system: prevents soot build-up, leaving a beautiful view of the fire.
■ Easy service and installation - 125 mm steel chimney connection with easy removal from inside the combustion chamber.
■ Easy installation: adjustable feet for precise leveling of the stove on any surface.
Technical data
| Nominal power (kW) | 6.7 |
|---|---|
| Thermal Efficiency (%) | 85.6 |
| Flue gas temperature (°C) | 220 |
| Optimal log length (mm) | 250 |
| Max billet length (cm) | 35 |
| diameter of the flue gas outlet | 125 |
| Air intake diameter (mm) | 67 |
| Base material | Steel |
| Energy class | A+ |
|---|---|
| EEI | 114 |
| Seasonal Energy Efficiency (%) | 76 |
| Heat output for space heating (kW) | 6.7 |
| CO emission (at 13% O2) ≤ given in % | 0.087 |
| CO emission (mg/m3) | 1092 |
| Pollen emission (mg/m3) | 29 |
| NOx emission (mg/m3) | 100 |
| OGC emission (mg/m3) | 97 |
| Flue gas mass flow (g/s) | 5 |
| Certificates | KRATKI PRO, Ecodesign, Designed for recuperation, BImSchV 2 |
|---|
| Fuel type | Seasoned deciduous wood (humidity ≤20%) |
|---|---|
| EAN | 5903751469070 |
| Width (cm) | 55.5 |
|---|---|
| Height (cm) | 50.8 |
| Depth (cm) | 43.3 |
| Weight (kg) | 93.81 |
